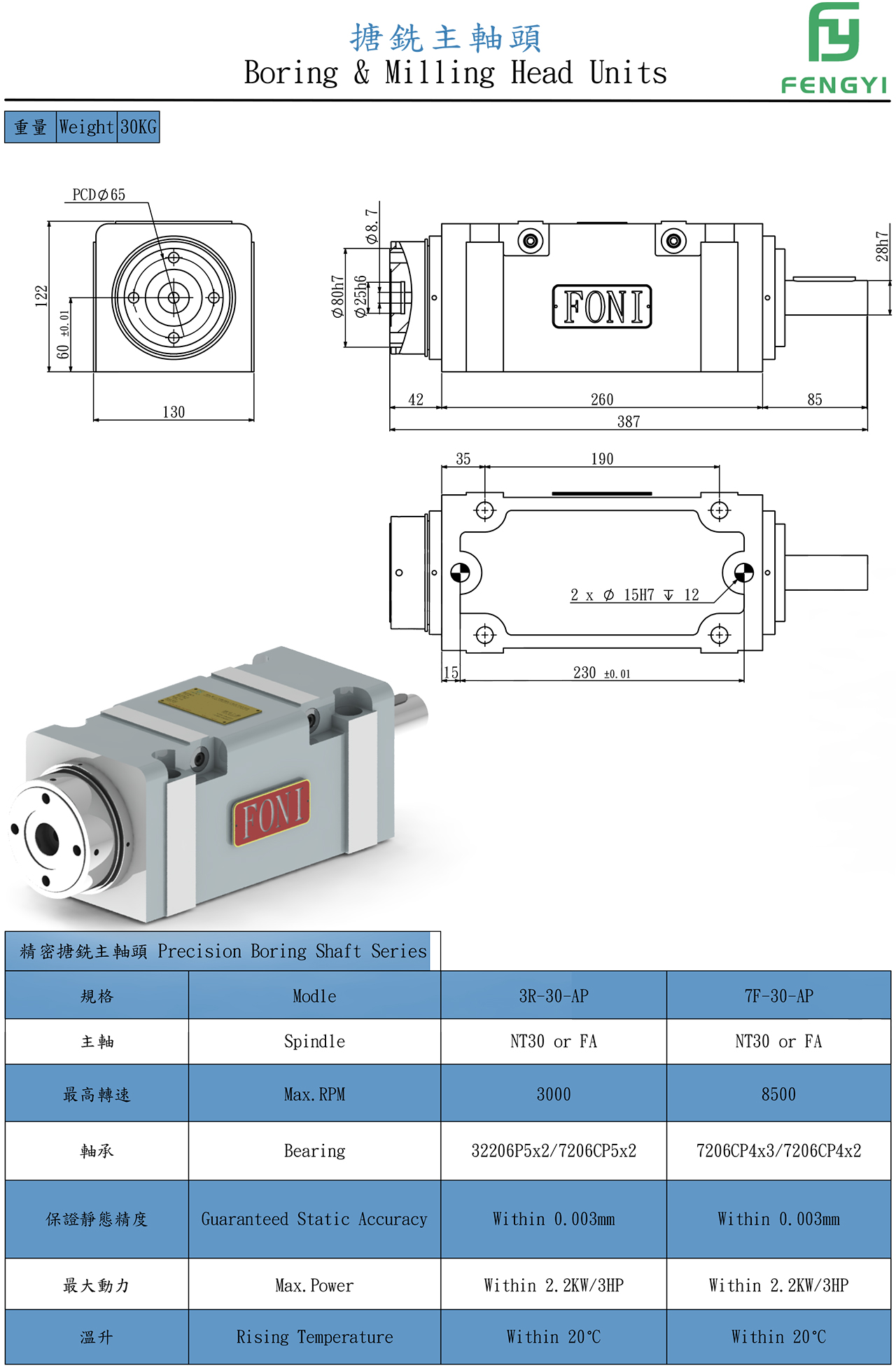

Precision Boring Shaft Series

    Products No : : 3R-30-AP/7F-30-AP
    This series is mainly aimed at heavy-duty boring and milling, with a guaranteed static accuracy within 0.003 and a maximum speed of 8500.
✧ Equipped with three-phase AC motor 2.2KW.
✧ The spindle speed is driven by a belt, with timing or multi-groove pulleys.
✧ The spindle can choose NT30, FA35.
