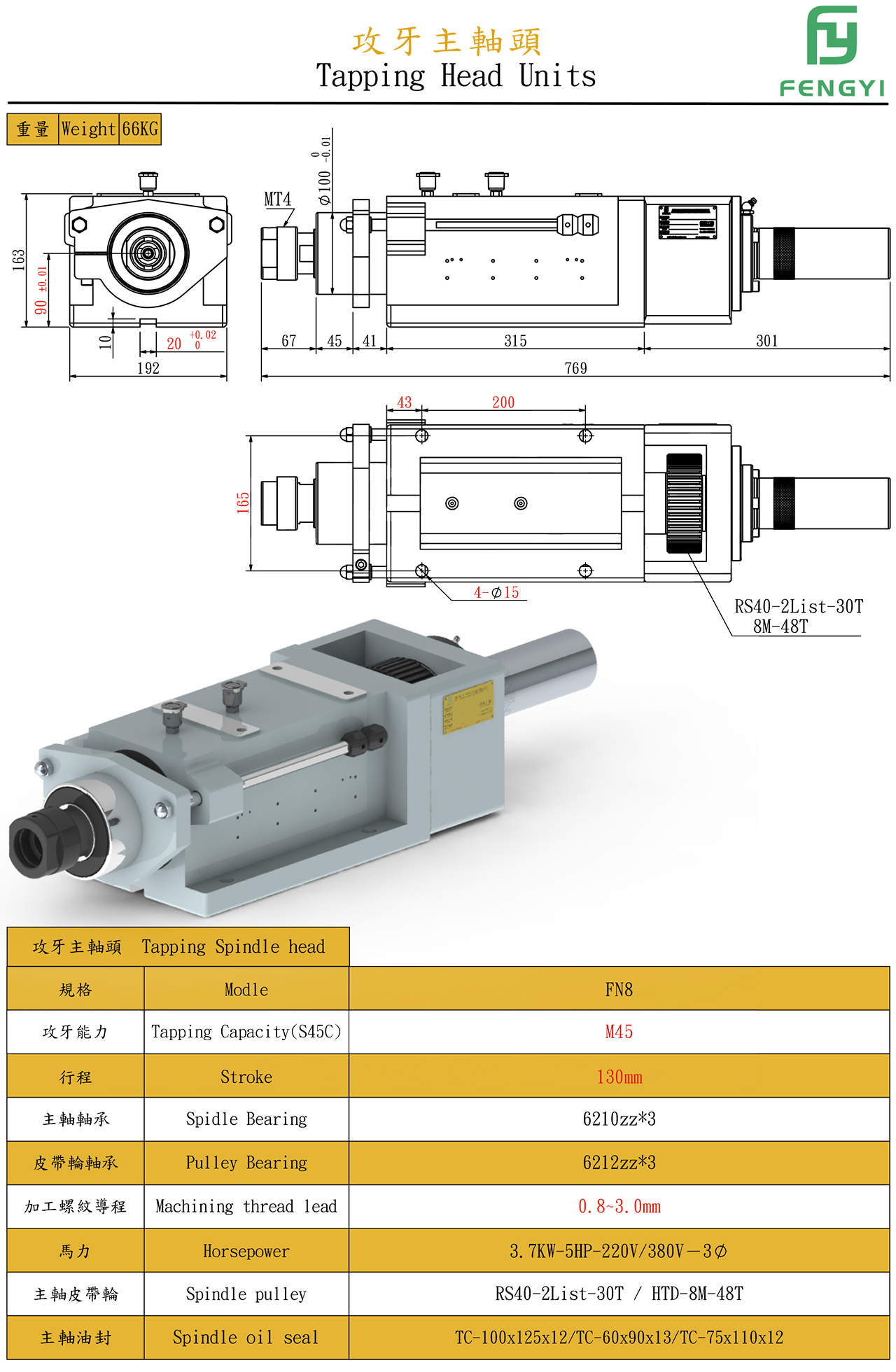

FN8 tapping head uses tooth gauge transmission and controls the pitch stroke. The processing thread lead is from 0.8 to 3.0mm. The maximum tapping capacity is M45 (S45C), and the maximum stroke is 130mm. It can also be used with multi-axis processing to improve processing efficiency.
✧ Equipped with three-phase AC motor 3.7KW. ✧ The spindle speed is driven by a belt or chain, with timing pulley or RS40 sprocket. ✧ The spindle is MT4. ✧ The accessories include KFPS proximity switch.
