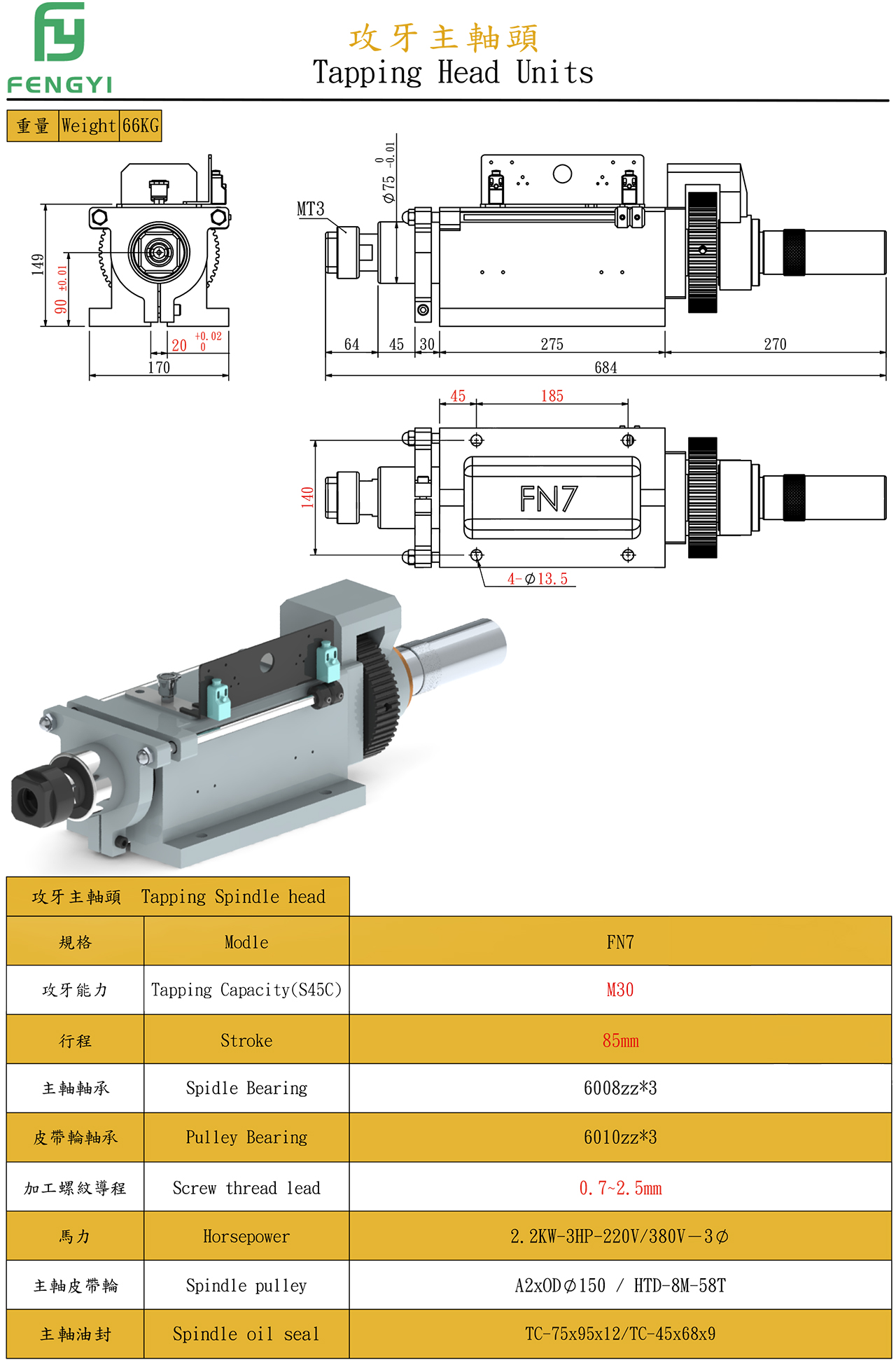

FN7 tapping head uses tooth gauge transmission and controls the pitch stroke. The processing thread lead is from 0.7 to 2.5mm. The maximum tapping capacity is M30 (S45C), and the maximum stroke is 85mm. It can also be used with multi-axis processing to improve processing efficiency.
✧ Equipped with three-phase AC motor 2.2 KW. ✧ The spindle speed is driven by a belt, with timing or V-belt pulley. ✧ The spindle is MT3. ✧ The accessories include KFPS proximity switch.
