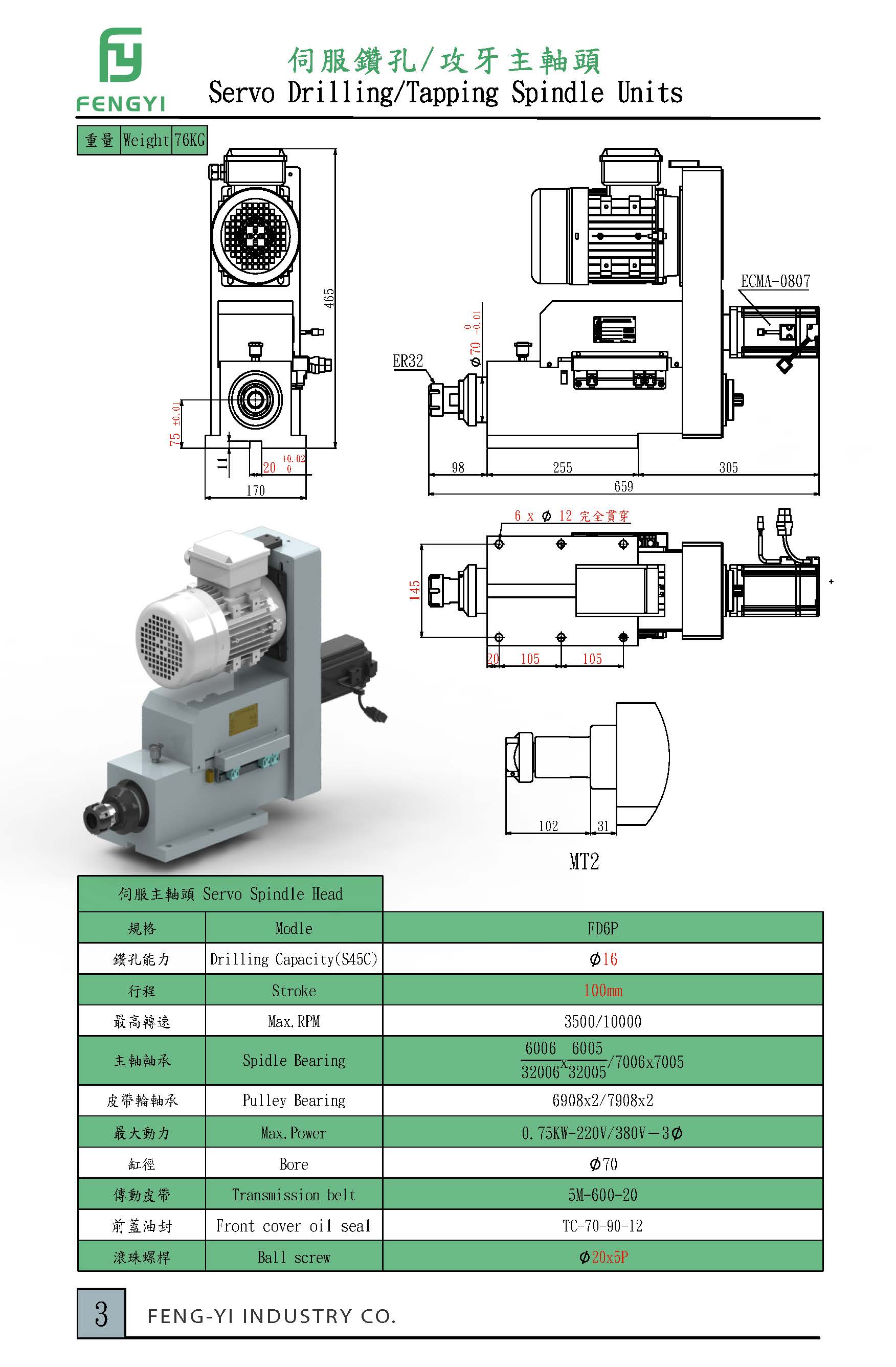

Servo Spindle Head

Products No : : FD6P-100

FD6P drilling tapping head is suitable for various processing applications, including drilling, chamfering, reaming, countersinking, the maximum processing capacity is 20 mm (S45C), the accuracy of the spindle nose is within 0.005, and the speed and depth of drilling and tapping are controlled by servo motor transmission.

✧ Equipped with three-phase AC motor 0.75KW.
✧ The spindle speed is driven by a belt, with timing or multi-groove pulleys.
✧ The spindle can choose ER32 or JT6.
✧ The accessories include KFPS proximity switch.
✧ Use PMI grinding grade ball screw.
✧ You can choose the brand and model of the servo motor.
