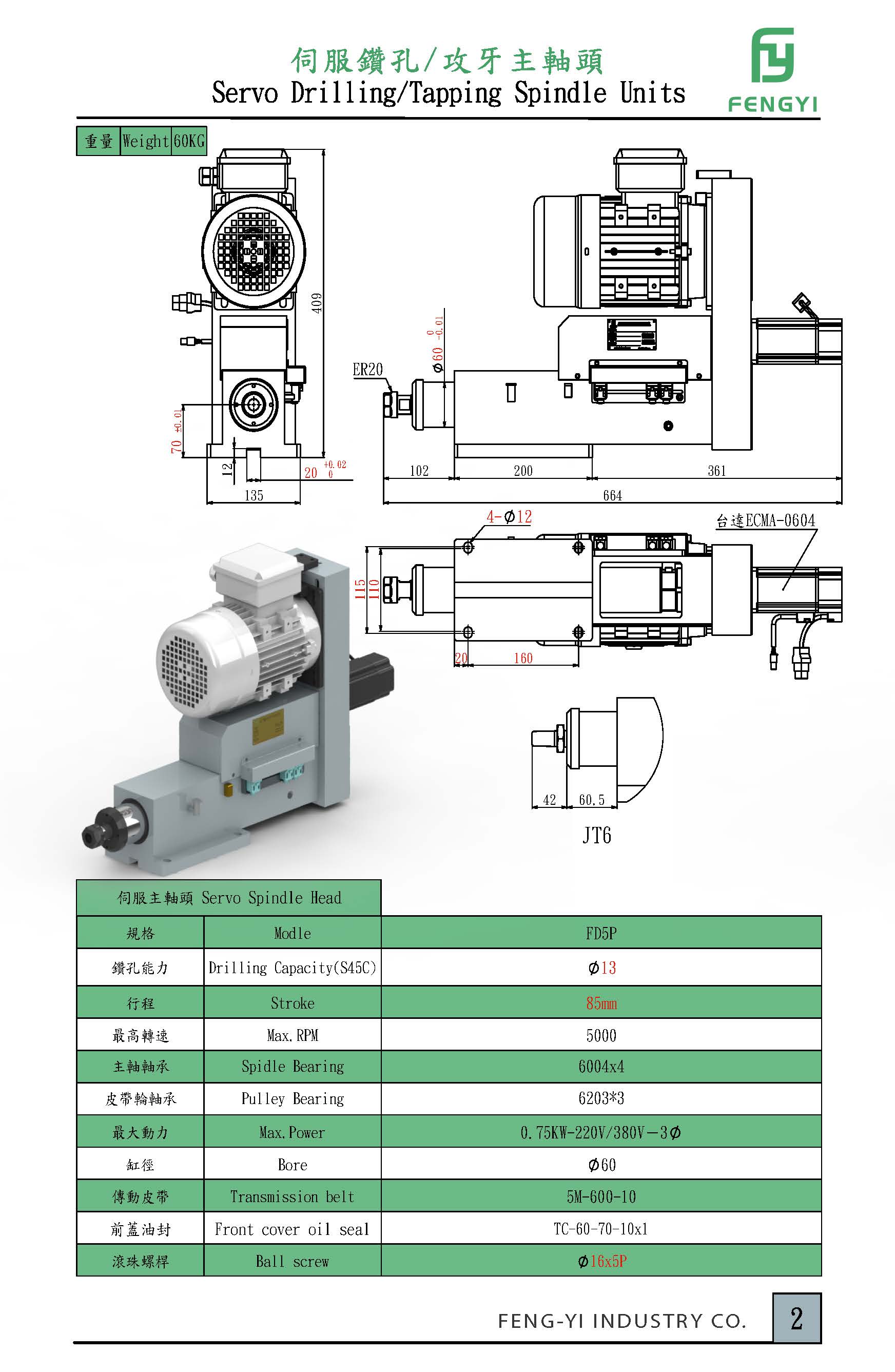

Servo Spindle Head

Products No : : FD5P-85

FD5P drilling tapping head is suitable for various processing applications, including drilling, chamfering, reaming, and countersinking. The maximum processing capacity is 13 mm (S45C), and the accuracy of the spindle nose is within 0.005. The speed and depth of drilling and tapping are controlled by servo motor transmission.

✧ Equipped with three-phase AC motor 0.75KW.
✧ The spindle speed is driven by a belt, with timing pulleys.
✧ The spindle can be ER20 or JT6.
✧ The accessories include KFPS proximity switch.
✧ Use PMI grinding grade ball screw.
✧ You can choose the brand and model of the servo motor.
