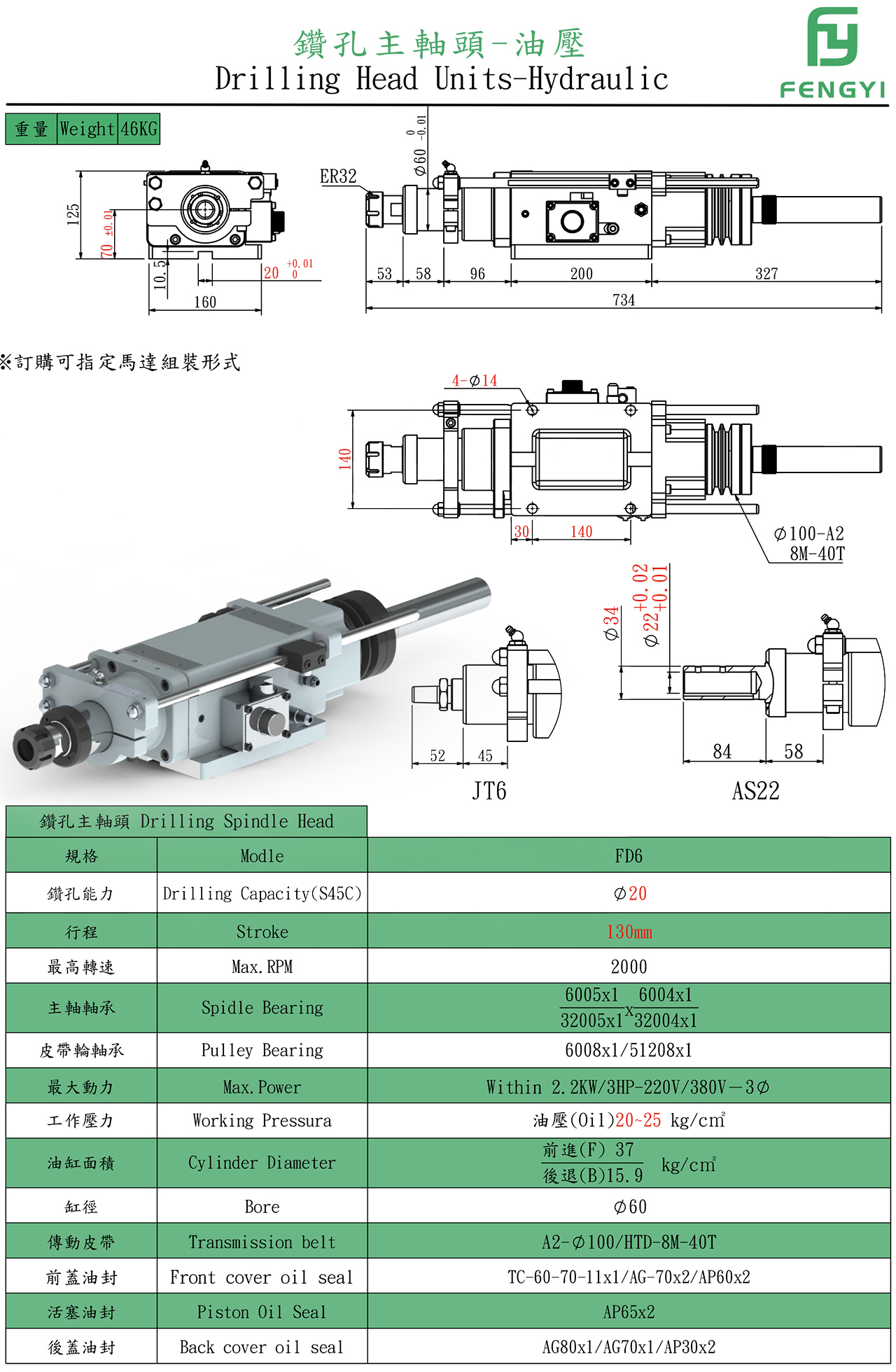

FD6 hydraulic drilling spindle head is suitable for various processing applications, including drilling, chamfering, reaming, and countersinking. The maximum processing capacity is 20 mm (S45C), the maximum stroke is 130 mm, and the accuracy of the spindle nose is within 0.005. The hydraulic feed is used to control the drilling feed speed, and it can be used with multi-axis processing to improve processing efficiency.
✧ Equipped with a three-phase AC motor of 1.5 kW.
✧ The spindle speed is driven by a belt, with timing or V-belt pulley.
