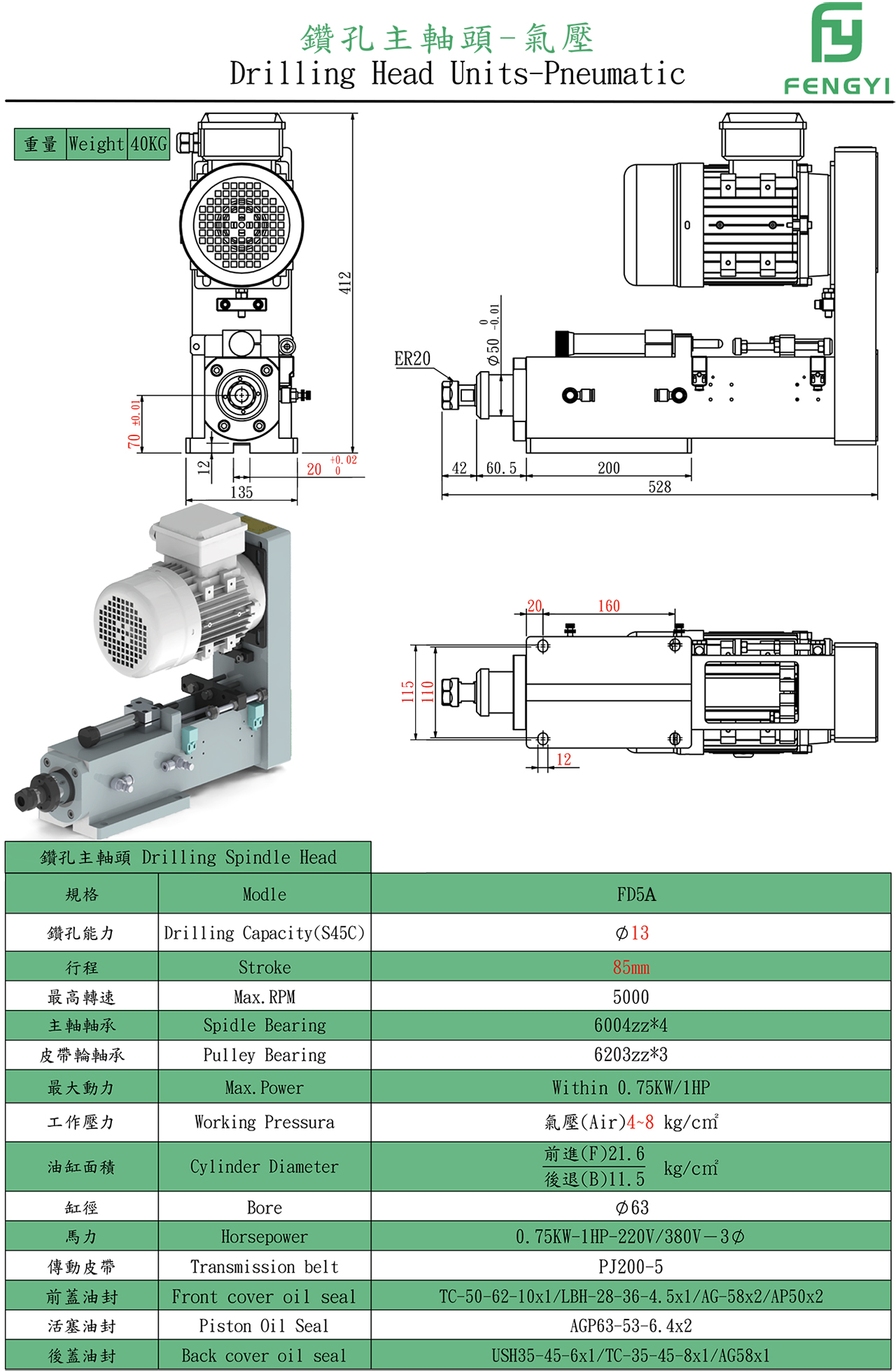

FD5A pneumatic drilling spindle head is suitable for various processing applications, including drilling, chamfering, reaming, countersinking, the maximum processing capacity is 13 mm (S45C), the maximum stroke is 85mm, the spindle nose accuracy is within 0.005,
Use pneumatic feed to control the drilling feed speed, and can be used with multi-axis processing to improve processing efficiency.
✧ Equipped with three-phase AC motor 0.75KW. ✧ The spindle speed is driven by a belt, with timing pulleys. ✧ The spindle can be ER20 or JT6. ✧ The accessories include KFPS proximity switch.
