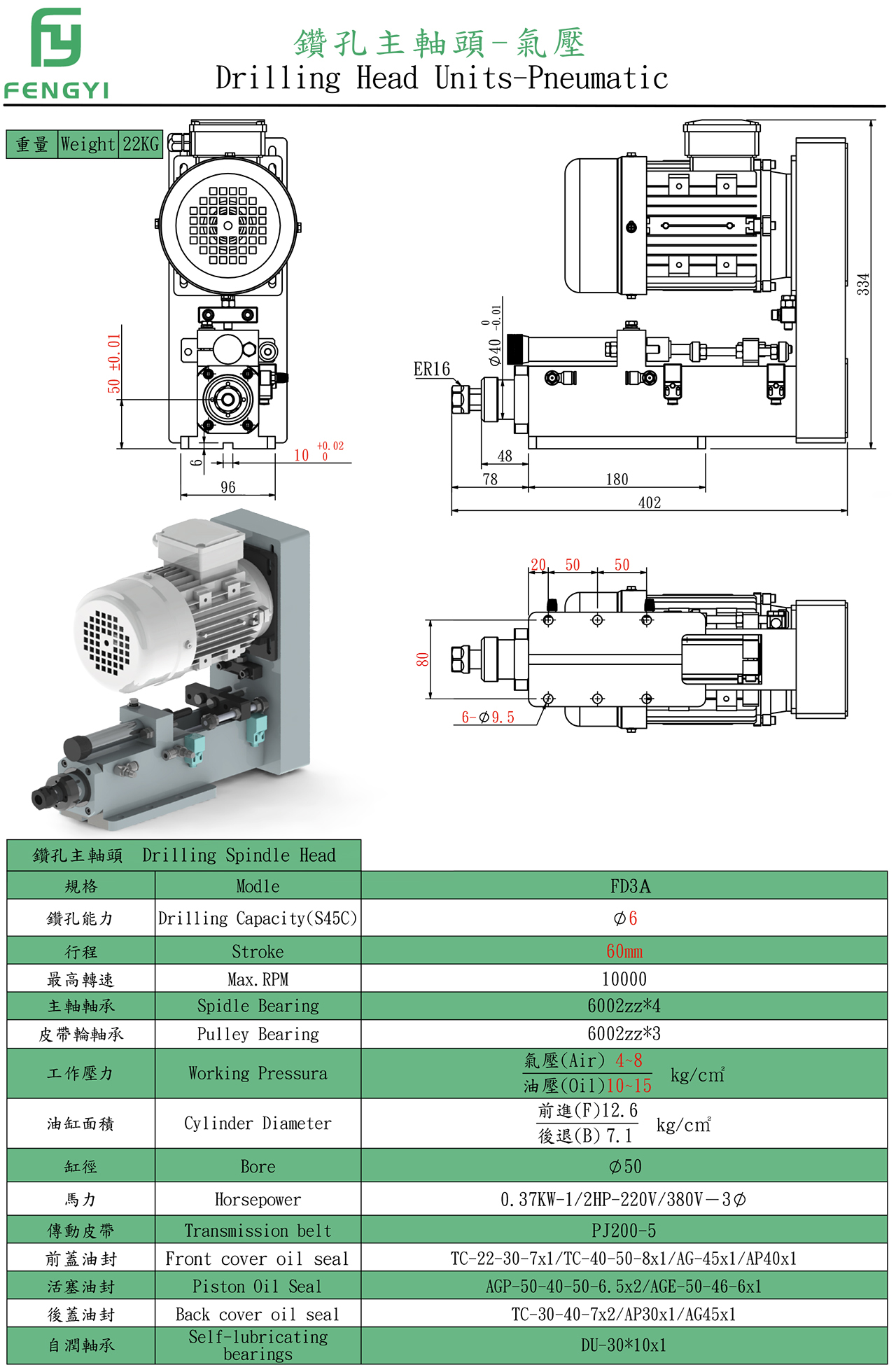

FD3A pneumatic drilling spindle head is suitable for various processing applications, including drilling, chamfering, reaming, and countersinking. The maximum processing capacity is 6 mm (S45C), the maximum stroke is 60 mm, and the accuracy of the spindle nose is within 0.005. It uses pneumatic feed to control the drilling feed speed, and can be used with multi-axis processing to improve processing efficiency.
✧ Equipped with three-phase AC motor 0.37KW.
✧ The spindle speed is driven by a belt with multi-groove pulleys.
